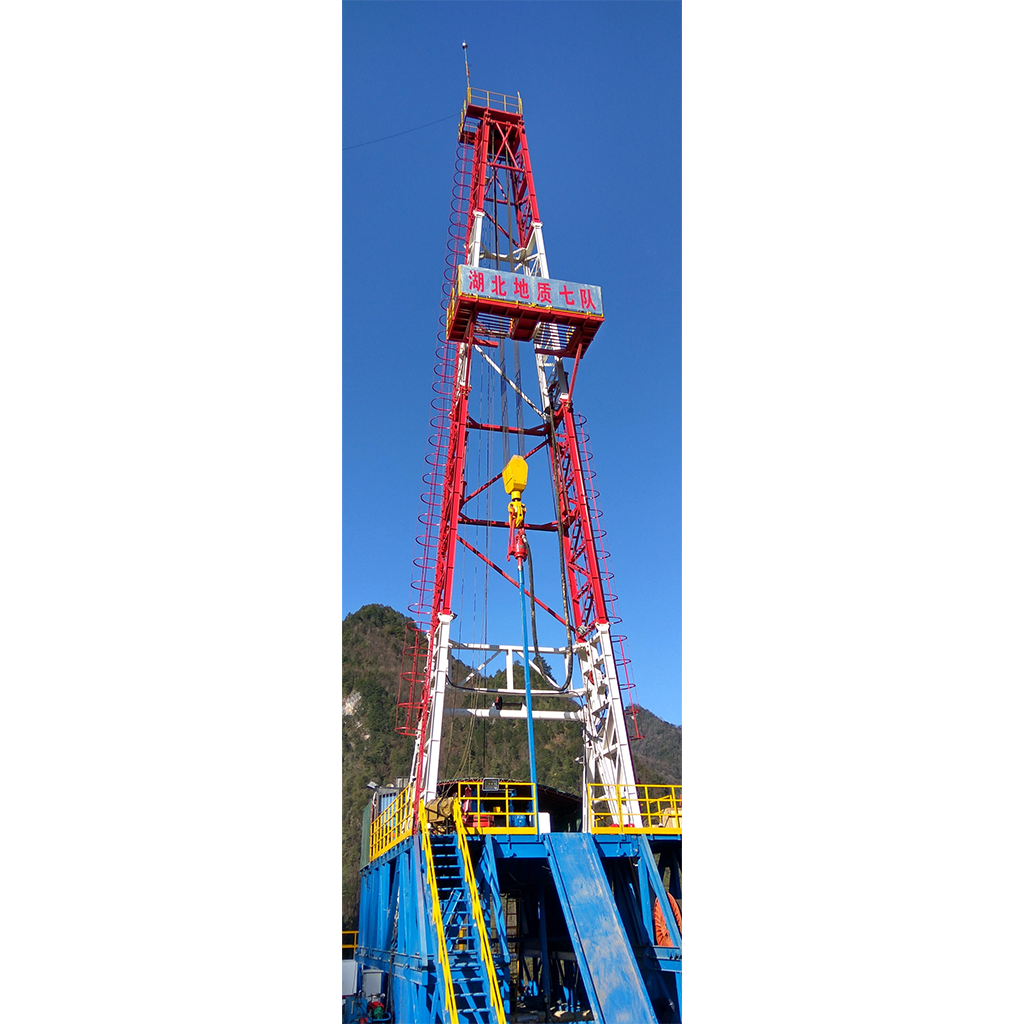

DBS Electric Drive Water Source Drilling Rig

DBS Series Water Source Drilling Rig for Efficient Water Well and Medium-Depth Drilling Operations

The DBS Series Water Source Drilling Rig is a multifunctional electric drilling rig designed primarily for water well construction, geothermal drilling, and shallow-to-medium depth exploration projects. Utilizing a Variable Frequency Independent Drive (VFD) system, the DBS series delivers smooth speed regulation, improved energy efficiency, and enhanced drilling performance compared to conventional mechanical rigs.

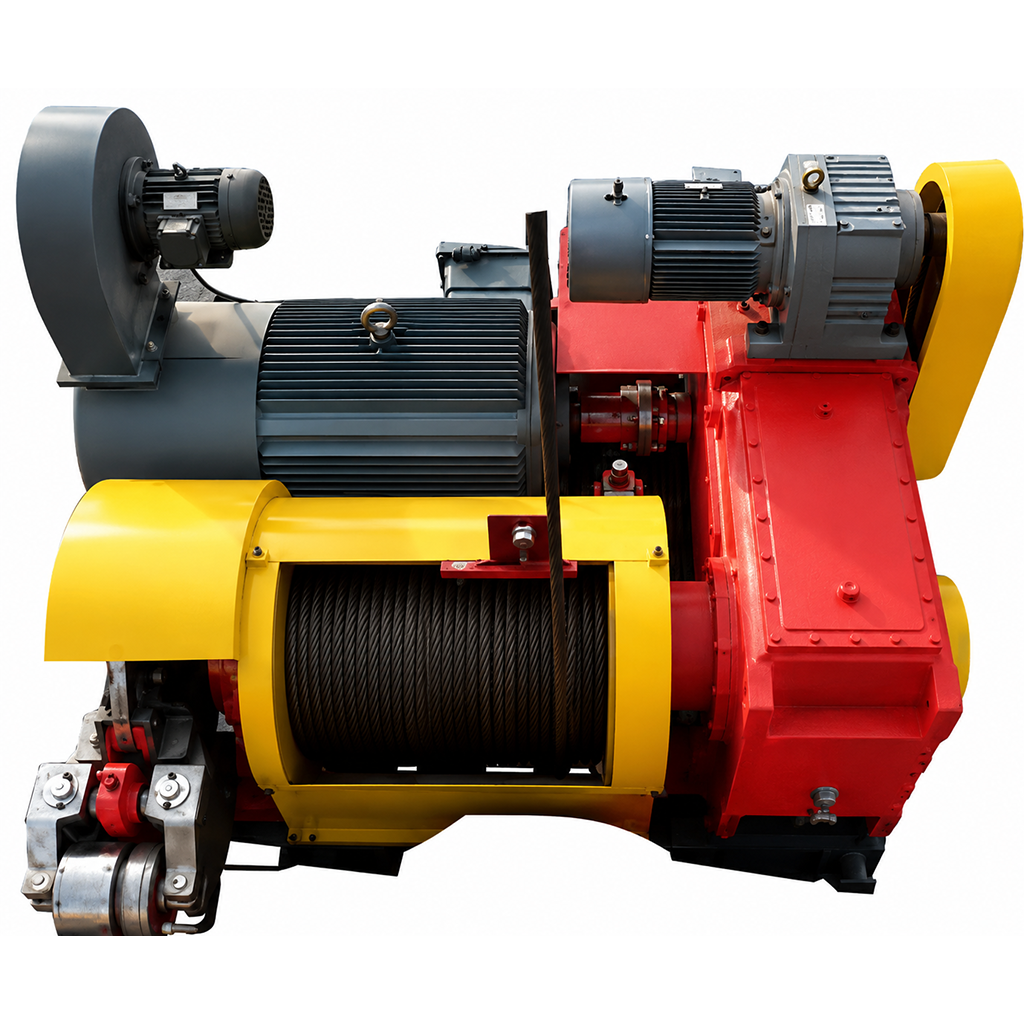

The rig features modular drawworks and rotary table systems, advanced automatic drilling functions, hydraulic disc braking technology, and digital centralized control. Its compact modular structure simplifies transportation, installation, and maintenance while providing excellent operational reliability.

Equipped with Lebus-grooved drums, automatic drilling functions, and intelligent control systems, the DBS Series reduces operating costs, extends equipment lifespan, and improves drilling precision. Available in drilling capacities ranging from 2,000 m to 4,000 m, the DBS Series is suitable for water well drilling, geothermal development, environmental drilling, and shallow oil & gas exploration projects.

Applications

• Water well drilling projects
• Geothermal well development
• Environmental monitoring wells
• Agricultural water supply wells
• Shallow oil & gas exploration
• Mineral exploration drilling
• Municipal groundwater projects
• Industrial water production wells
• Remote drilling locations
• Workover and maintenance operations

Key Advantages

• Variable frequency independent drive technology
• High transmission efficiency with reduced energy loss
• Modular and compact rig design
• Automatic drilling functions

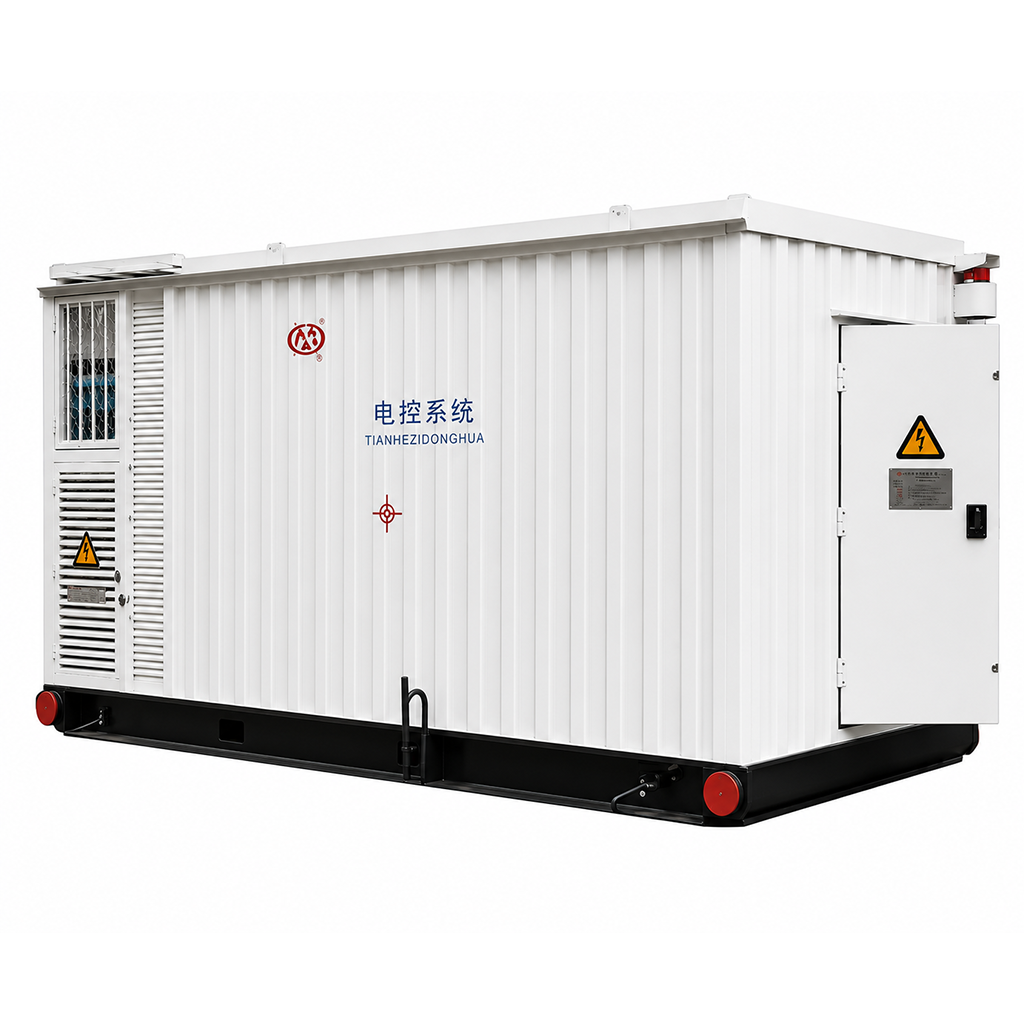

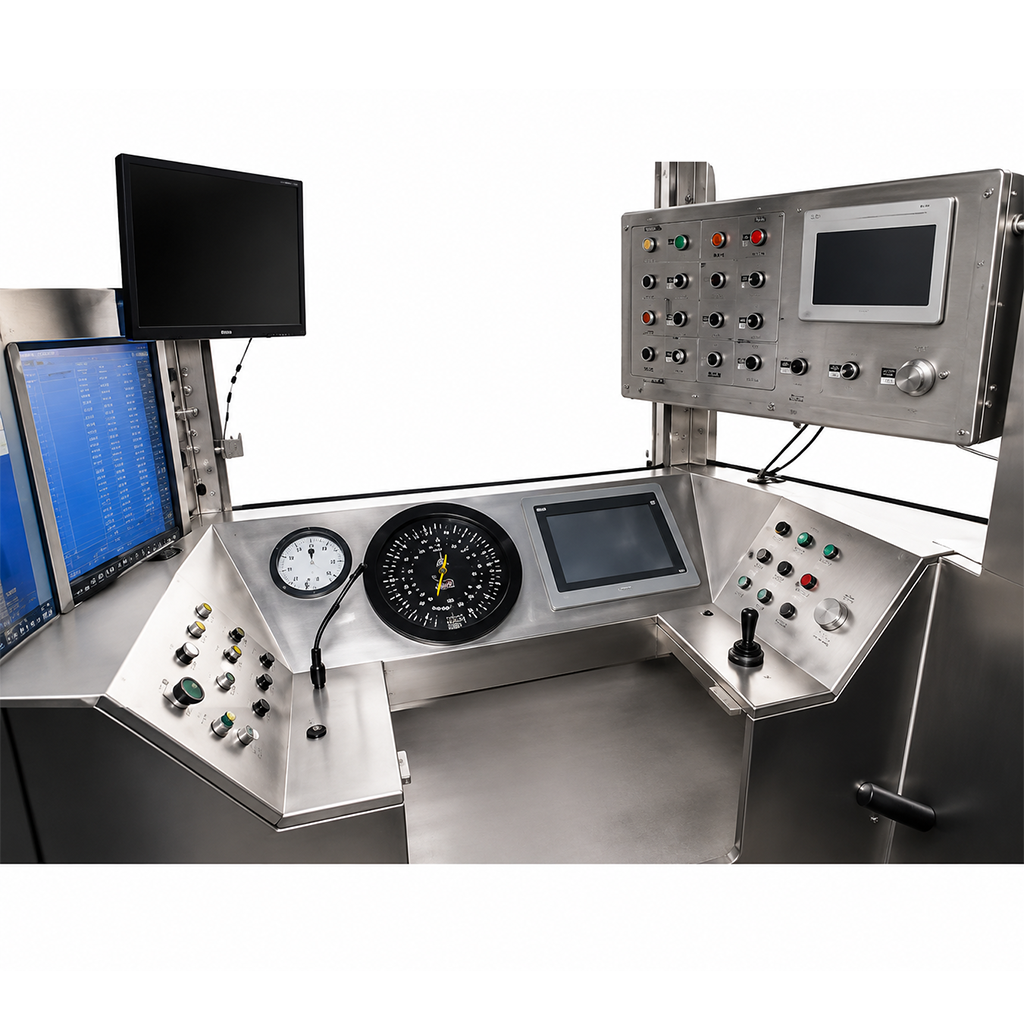

• Digital centralized control system
• Multiple braking and safety systems
• Extended wire rope service life with Lebus grooves
• Reduced maintenance requirements
• Smooth torque and speed regulation
• API and ISO-compliant design
