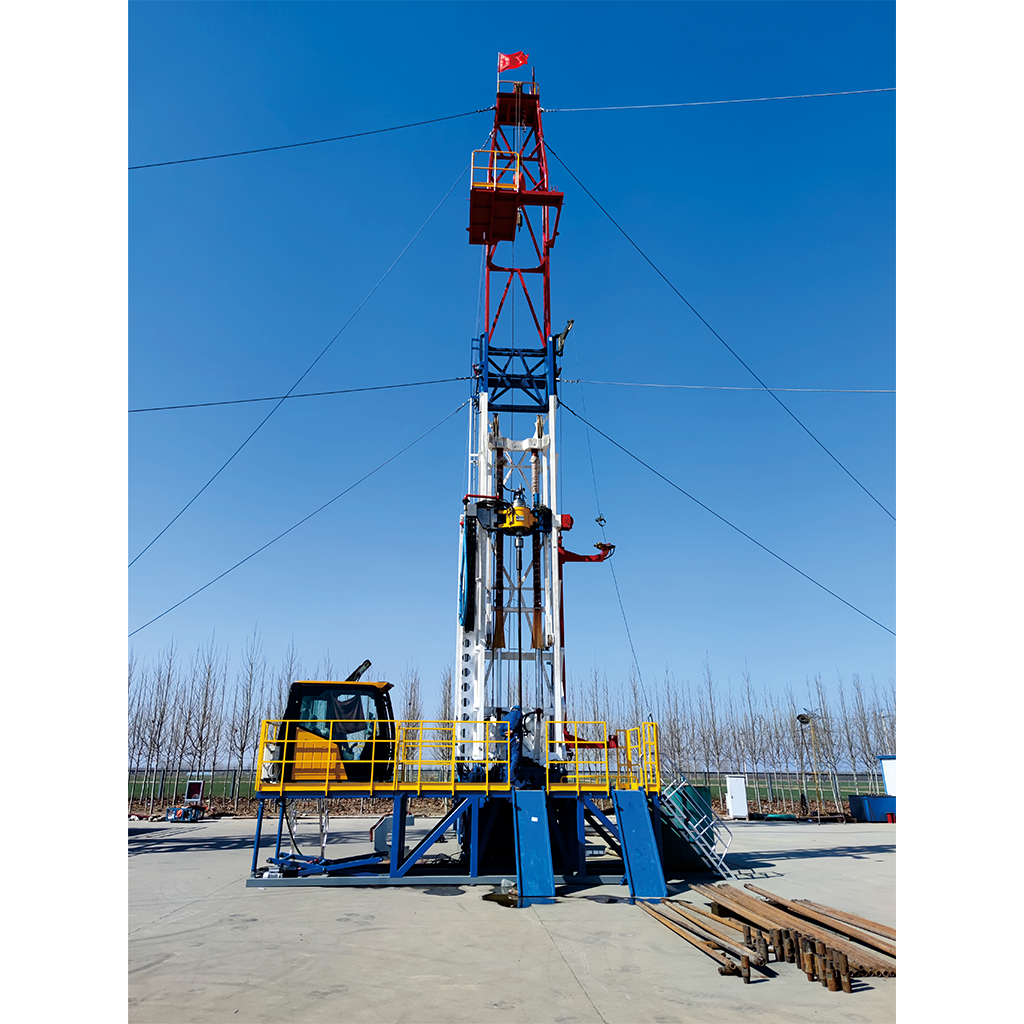

Modular Electric Drive Top Drive Drilling Rig

Modular Electric Drive Top Drive Drilling Rig for Efficient Directional and Deep Well Drilling

The Modular Electric Drive Top Drive Drilling Rig is a modern drilling solution that combines a top drive drilling system, permanent magnet synchronous motor technology, and modular rig architecture into a compact and highly efficient platform. Unlike conventional rotary table rigs, this system utilizes a direct-drive top drive unit that allows continuous drillstring rotation, improving drilling efficiency while reducing connection time and non-productive operations.

The rig is powered by high-efficiency permanent magnet synchronous motors, delivering precise torque control, smooth speed regulation, and reduced energy consumption. Its modular design enables rapid assembly, transportation, and deployment, making it particularly suitable for land drilling projects where mobility and operational flexibility are essential.

Integrated digital monitoring systems, hydraulic handling equipment, and intelligent control functions enhance safety, drilling performance, and operational reliability. The Modular Electric Drive Top Drive Drilling Rig is widely used for directional drilling, cluster wells, workover operations, and medium-depth exploration projects where precise drilling control and rapid mobilization are required.

Applications

• Directional and horizontal drilling operations
• Cluster well drilling programs
• Medium-depth oil & gas wells
• Land-based drilling projects
• Remote exploration campaigns
• Workover and re-entry operations
• Environmentally sensitive drilling locations
• Fast-moving drilling programs
• Geothermal drilling applications
• Modular rig deployment projects

Key Advantages

• Direct-drive top drive drilling technology
• Permanent magnet synchronous motor efficiency
• Continuous drillstring rotation
• Modular transportable design
• Reduced rig-up and rig-down time
• Improved drilling efficiency and penetration rates
• Precise torque and speed control
• Digital monitoring and automation capabilities
• Lower maintenance requirements
• API-compliant drilling equipment
