Releasing Spear
Reliable Releasing Spear for Internal Fishing Operations
GREAT Releasing Spear is a high-performance internal fishing tool designed to engage and retrieve internal fish safely and efficiently from the wellbore. Engineered with rugged high-strength alloy steel construction, the spear provides secure engagement over a large contact area while minimizing damage to the fish during recovery operations.
Its simple and durable design allows reliable operation under severe jarring and pulling conditions, while the releasing mechanism enables easy disengagement if the fish cannot be recovered.
Application
- Internal Fishing Operations
- Tubular Recovery
- Drill Pipe Retrieval
- Workover & Well Intervention
- Pack-Off & Internal Cutting Operations
Key Advantages
- Secure internal fish engagement
- Easy release and disengagement mechanism
- High resistance to jarring and pulling loads
- Minimal risk of fish damage
- Customizable connection and mandrel configurations
The Releasing Spear is designed to provide a reliable and effective method for engaging and retrieving internal fish during downhole fishing operations. The tool is built with rugged high-strength alloy steel construction to withstand severe pulling forces, impact loads, and jarring conditions commonly encountered during fishing operations.
The spear engages the fish internally over a large contact area, ensuring strong gripping performance while minimizing damage to the fish structure. If retrieval becomes impossible, the spear can be easily released and disengaged from the fish, improving operational safety and flexibility.
The Releasing Spear assembly consists of:
- Mandrel
- Grapple
- Releasing Ring
- Bull Nose Nut

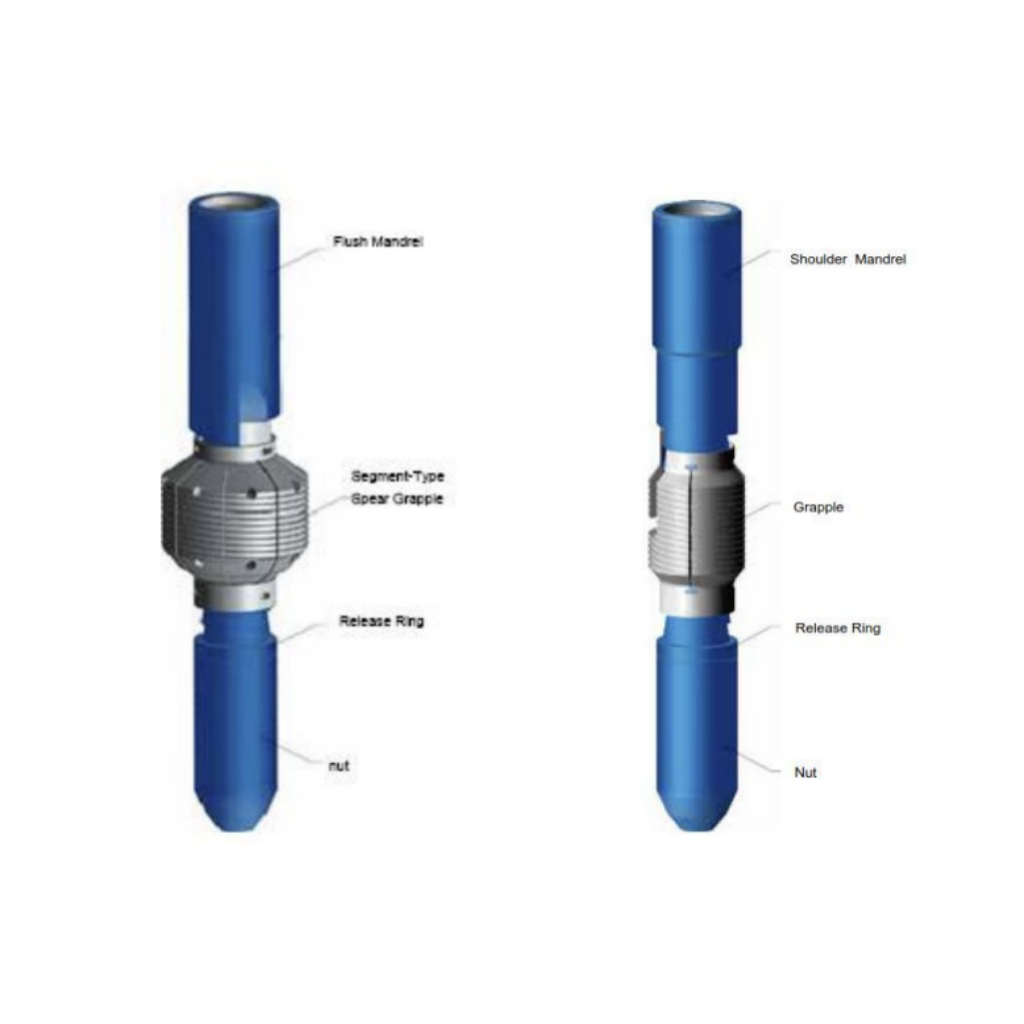

The mandrel is manufactured from specially heat-treated high-strength alloy steel and is available in two configurations:
- Flush Type → enters completely into the fish
- Shoulder Type → provides a positive landing position on top of the fish
The tool can also be combined with additional downhole accessories such as pack-off assemblies and internal cutters for more complex well intervention applications.
Key Features
- High-strength heat-treated alloy steel mandrel
- Reliable internal fish engagement system
- Large contact gripping area to reduce fish damage
- Releasing mechanism for easy disengagement
- Rugged construction for severe jarring and pulling operations
- Available in flush and shoulder type mandrels
- Customizable top connection configurations
- Compatible with pack-off assemblies and internal cutters
Applications
- Internal Fishing Operations
- Drill Pipe & Tubular Retrieval
- Workover Operations
- Well Intervention Services
- Downhole Recovery Operations
- Pack-Off Assembly Applications
- Internal Cutting Operations
Advantages
- Strong and secure fish engagement
- Easy release capability if fish cannot be recovered
- Reduced risk of damaging the fish
- High durability under severe downhole conditions
- Simple design with minimal loose components
- Flexible configuration for various fishing requirements
- Compatible with additional fishing and intervention tools
- Reliable performance in demanding well environments
Ordering Information
When ordering, please specify:
- Releasing spear model
- Top connection type
- Exact fish size and weight
- Flush or shoulder type mandrel requirement
Available Types
- LM-T Series
- LM-B Series
Mandrel Options
- Flush Type Mandrel
- Shoulder Type Mandrel
Available Size Range
- Catch Size Range: 1 7/8" – 13 3/8"
- Nut O.D. Range: 35 mm – 222 mm
- I.D. Range: 8 mm – 71 mm
Specifications – Releasing Spear LM-T
|
Model |
Nut O.D. (mm) |
Catch Size (in.) |
I.D. (mm) |
|
LM-T48 |
35 |
1 7/8 |
8 |
|
LM-T60 |
45 |
2 |
8 |
|
LM-T73 |
56 |
2 7/8 |
10 |
|
LM-T89 |
68 |
3 1/2 |
12 |
|
LM-T102 |
82 |
4 |
16 |
|
LM-T114 |
88 |
4 1/2 |
19 |
|
LM-T127 |
108 |
5 |
25 |
|
LM-T147 |
108 |
5 1/2 |
30 |
|
LM-T168 |
114 |
6 5/8 |
35 |
|
LM-T178 |
114 |
7 |
40 |
|
LM-T219 |
174 |
8 5/8 |
71 |
|
LM-T245 |
174 |
9 5/8 |
71 |
|
LM-T273 |
210 |
10 3/4 |
71 |
|
LM-T340 |
222 |
13 3/8 |
71 |
